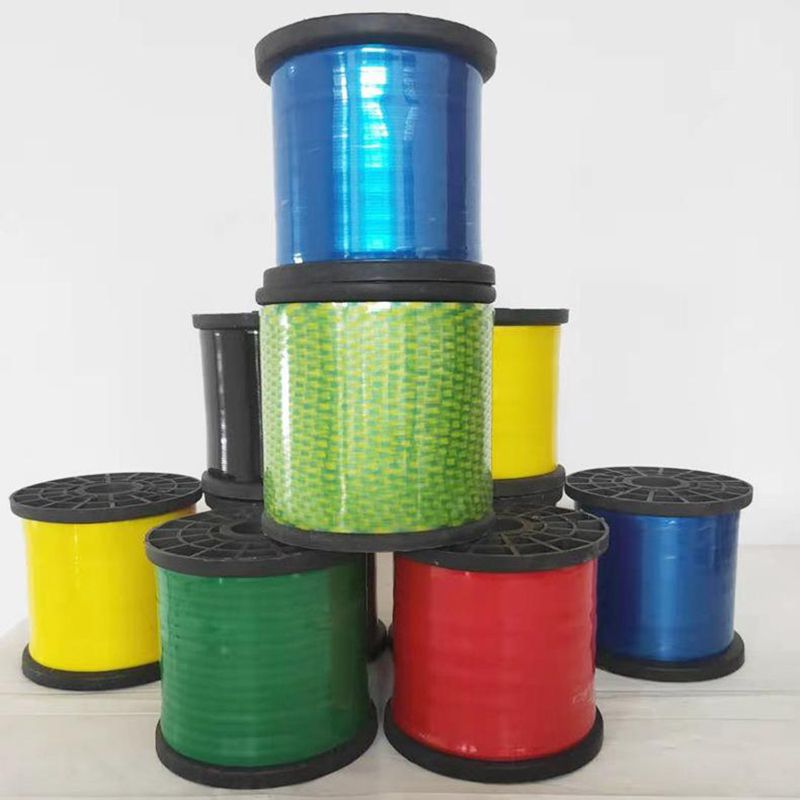

Color Coding Electrical Tape
S&A introduces color coding electrical tape, an ideal solution for efficient cable identification. Our tape is processed using PET material, resulting in a smooth, wrinkle-free, knot-free, hole-free, crack-free, and impurity-free tape with neatly trimmed edges. It serves as a replacement for colored masterbatches in power cables and cross-linked cables, providing substantial cost savings.
Specifications
| Width (mm) | Grade (μm) | Tensile Strength (Mpa) | Elongation (%) | Thermal Shrinkage (%) | Short-Term Stability (℃) |
| 2.0±0.5 | 40±5 | 165↑ | 15↑ | 10↓ | 180-230 |
| 3.0±0.5 | 40±5 | 165↑ | 15↑ | 10↓ | 180 |
| 4.5±0.5 | 40±5 | 165↑ | 15↑ | 10↓ | 180 |
| 7.0±0.5 | 40±5 | 165↑ | 15↑ | 10↓ | 180 |
| Customized specifications are available upon request. | |||||
Note: The tape is available in red, yellow, blue, green, black, and other dual-color combinations. It can withstand high temperatures up to 230℃ momentarily and does not fade during extrusion. Packaging is done in plastic shafts with an inner diameter of 25mm, outer diameter of 120mm, height of 125mm, and carton packaging.
