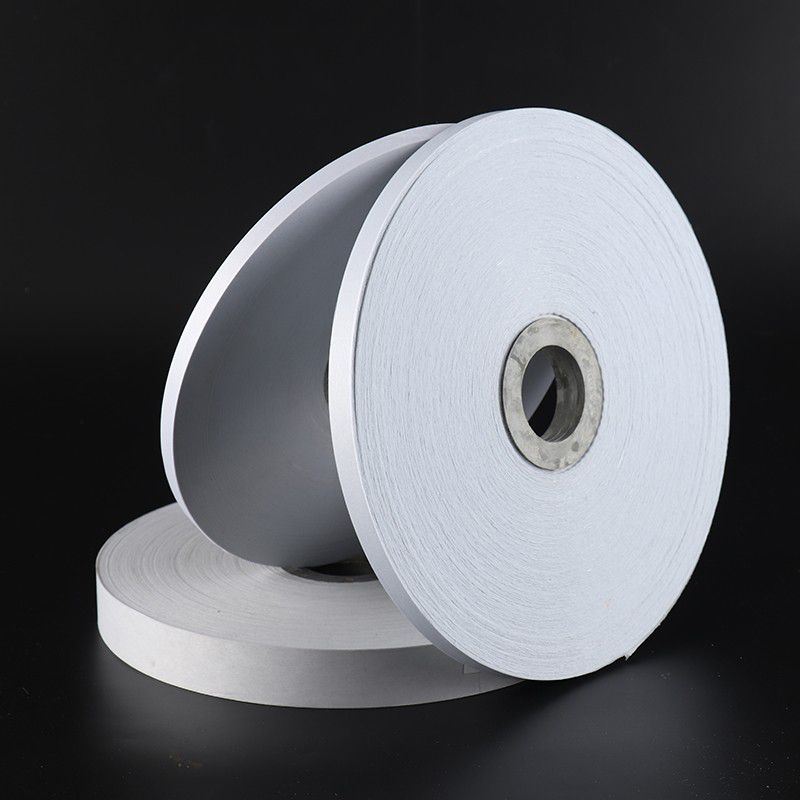

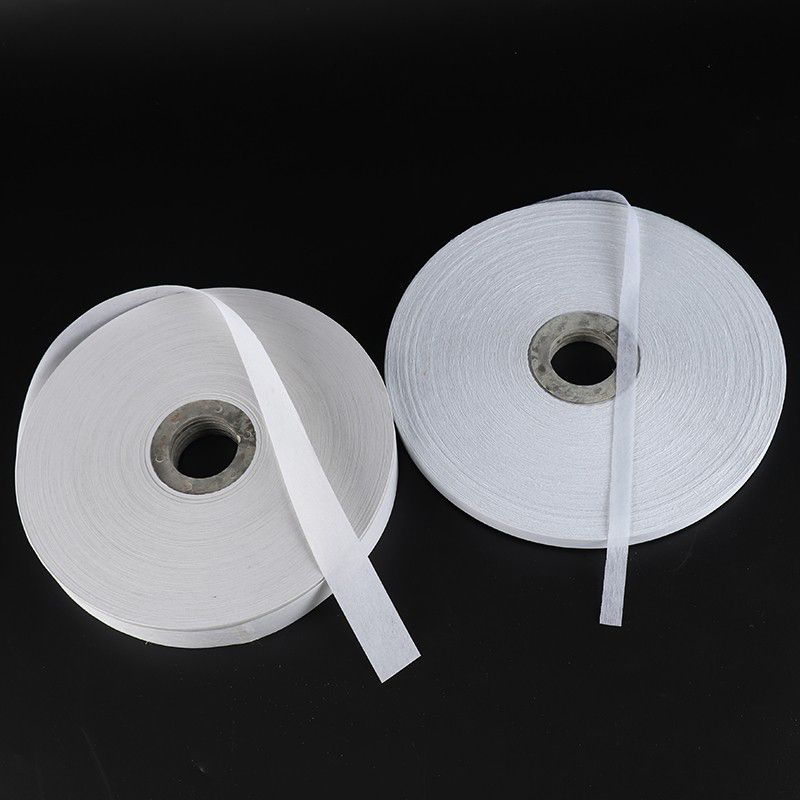

Non-Woven Cable Wrapping Tape

S&A presents non-woven cable wrapping tape, also known as lightweight non-woven tape or PET non-woven tape. It is composed of 100% polyester fibers that are impregnated with foam, dried, and pressed to achieve high longitudinal strength. Our tape is suitable for rubber-sheathed cables, power cables, special cables, communication cables, coaxial cables, audio stage cables, and optical cables.

  • Non-Woven Cable Wrapping Tape
  • Non-Woven Cable Wrapping Tape
Features
  • Lightweight and Flexible: The thin and lightweight design of the plain weave non-woven tape makes it suitable for various cable wrapping applications.
  • Excellent Thermal Resistance: The tape withstands high temperatures without melting or deforming (up to 180℃), ensuring cable stability during sudden temperature changes.
  • Sulfurization Resistance: It exhibits excellent resistance to sulfurization.
Specifications
Grade Elongation (%) Tensile Strength (N/30mm)） Basis Weight (g/m²)） Thermal Shrinkage (%) Water Absorption Speed (mm/min)
30±5μm 10↑ 24↑ 17±3 2.5↓ 0.1↓
50±5μm 10↑ 50↑ 30±4 2.5↓ 0.1↓
60±5μm 10↑ 80↑ 30±4 2.5↓ 0.1↓
80±5μm 10↑ 100↑ 40±5 2.5↓ 0.1↓
100±5μm 10↑ 120↑ 60±5 2.5↓ 0.1↓
120±5μm 10↑ 150↑ 70±5 2.5↓ 0.1↓
150±5μm 10↑ 160↑ 75±5 2.5↓ 0.1↓
200±5μm 10↑ 200↑ 75±5 2.5↓ 0.1↓
Customized specifications are available upon request.

Note: The tape is available in white color. The minimum width for slitting is 5mm, with inner core sizes of 52mm or 76mm. The maximum outer diameter for winding is 800mm, and packaging is done in cartons.
Our Materials

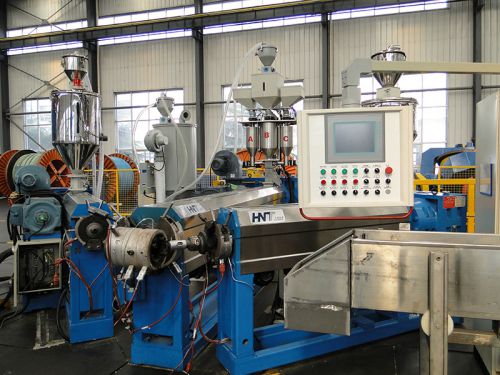

Our Machines
