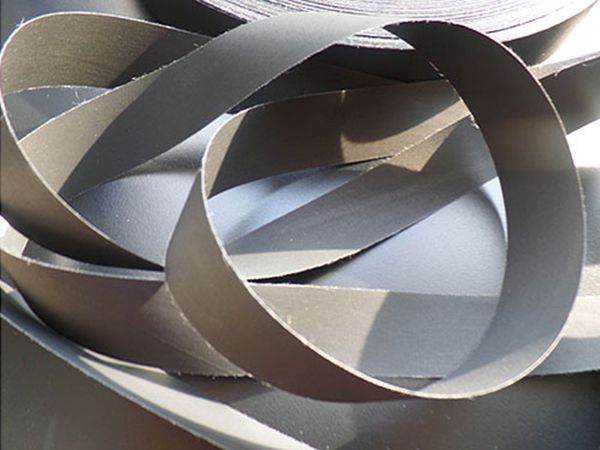

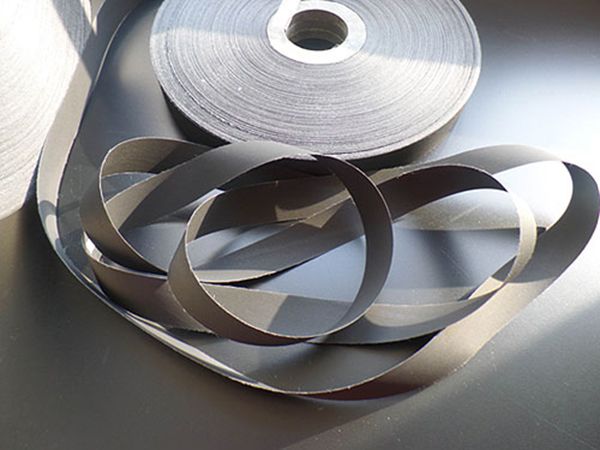

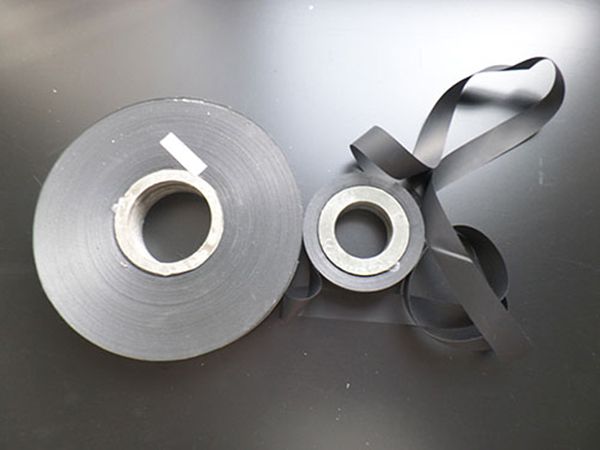

Semi-Conductive Nylon Tape
S&A presents semi-conductive nylon tape, designed for cable conductor shielding applications. Our tape is made from nylon tape impregnated with conductive adhesive, providing efficient cable shielding capabilities.
Features
- Conductive Properties: The tape exhibits low resistance, effectively weakening the electric field intensity and ensuring efficient cable shielding.
- High Mechanical Strength: Its high tensile strength allows for secure and reliable cable conductor binding and shielding.
- Heat Resistance: The tape maintains stable performance in high-temperature conditions, ensuring reliable cable protection.
Specifications
| Grade (μm) | Basis Weight (g/m²) | Tensile Strength (N/cm) | Elongation (%) | Surface Resistance (Ω) | Volume Resistance (Ω.cm) | Short-Term Stability (℃) | Long-Term Stability (℃) |
| 100±20 | 90±10 | 120↑ | 25↑ | 1000↓ | 1*105↓ | 210 | 145 |
| 120±20 | 100±10 | 140↑ | 40↑ | 1000↓ | 1*105↓ | 210 | 145 |
| 140±20 | 110±10 | 150↑ | 40↑ | 1000↓ | 1*105↓ | 210 | 145 |
| Customized specifications are available upon request. | |||||||
Note: The tape is available in black color. The minimum width for slitting is 5mm, with inner core sizes of 52mm or 76mm. The maximum outer diameter for winding is 800mm, and packaging is done in cartons.
