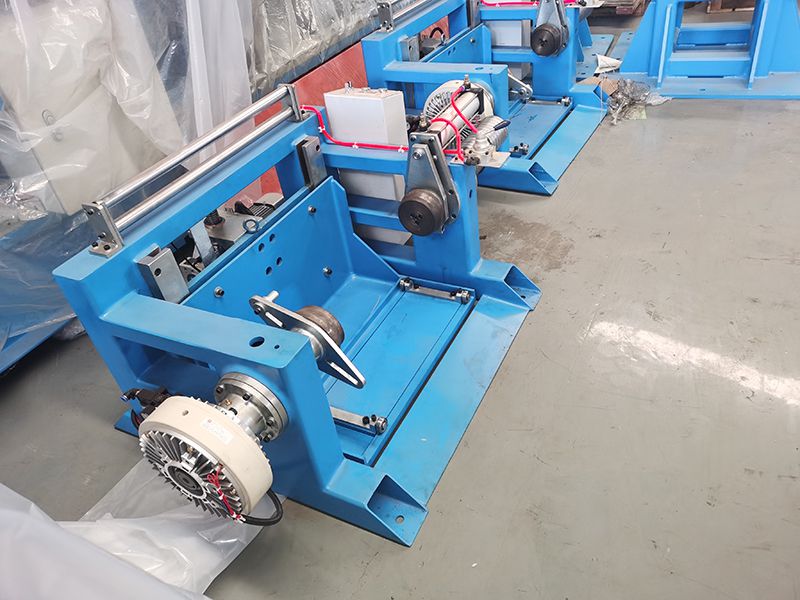

Pay-Off

• Pneumatic release and clamp, convenient loading and unloading of wire bobbins
• The magnetic particle brake ensures stable tension control, which is operated on the touchscreen.

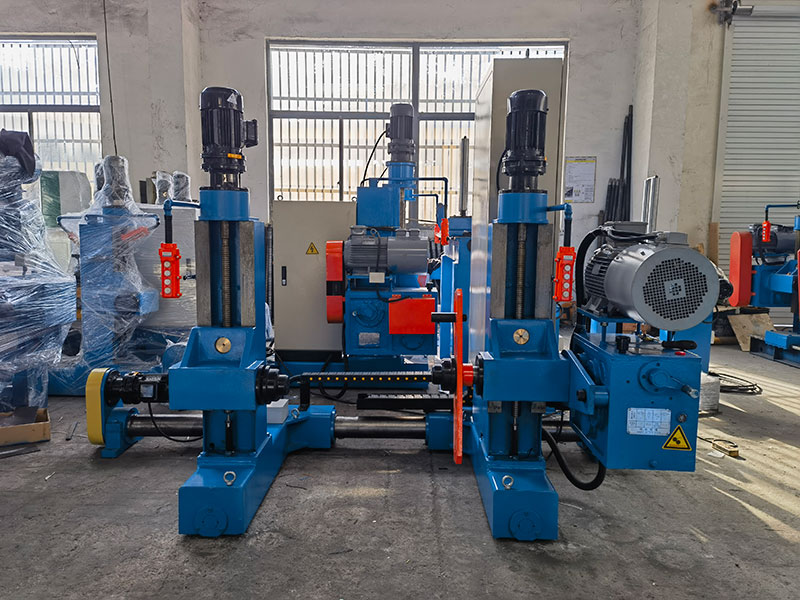

Take-Up

• End-shaft structure with electrically controlled clamping and release of wire bobbins
• Electric lifting and clamping with safety protection mechanism
• Wire arrangement and speed control through time relays, providing high thrust and easy adjustment

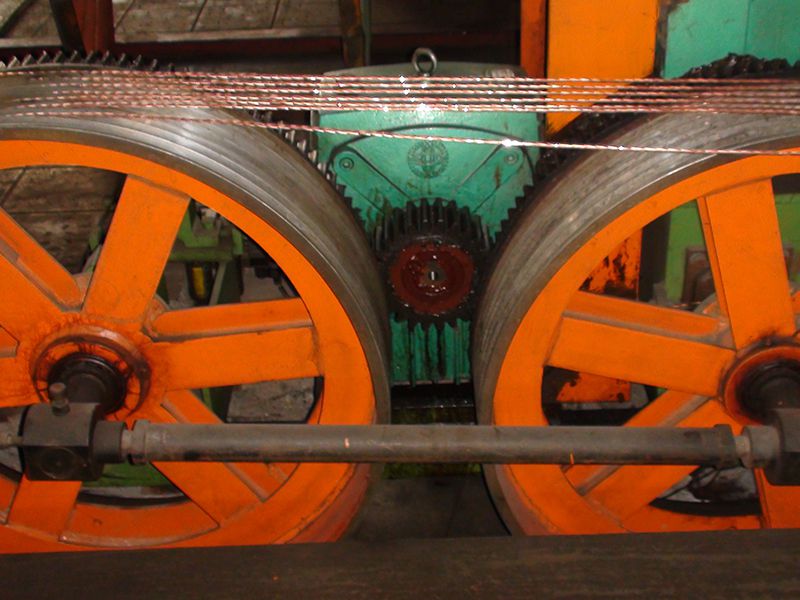

Double Wheel Capstan

• Dual-driven wheels with natural wire distribution to prevent conductor damage
• Pneumatic pressure system to prevent cable slippage during startup
• Excellent synchronization and pulling force
• Safety overload protection with pin coupling

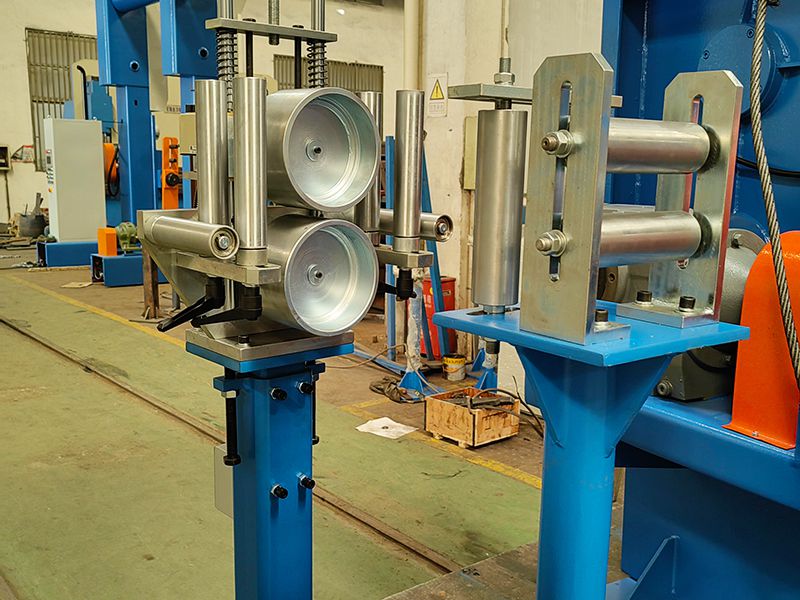

Meter Counter

• Non-contact electronic meter counter for accurate and reliable measurements
• Mechanical meter counter included

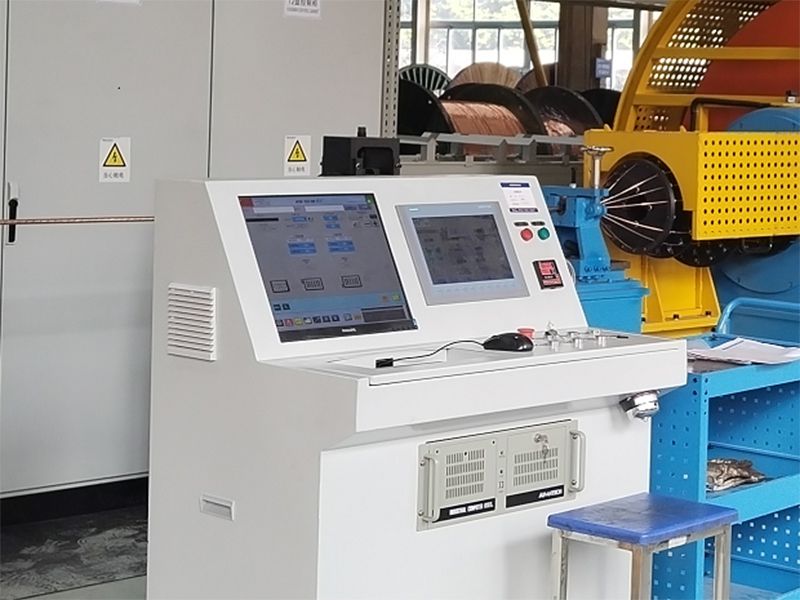

Control System

• Siemens PLC control for smooth operation and reliable performance
• All technical parameters adjustable via the touchscreen interface, with the ability to store production process parameters
