Copper Wire Screening Machine

S&A introduces our copper wire screening machine, designed to shield and protect cables using copper wires or tapes.

Specifications

Single wire diameter	⌀0.6~Ø1.7mm
Cage rotate speed	28.06~66.86r/min
Cable pitch	97~1028mm
Rotate speed range	178~396r/min
Cable pitch range	16~162mm

Request a Quote

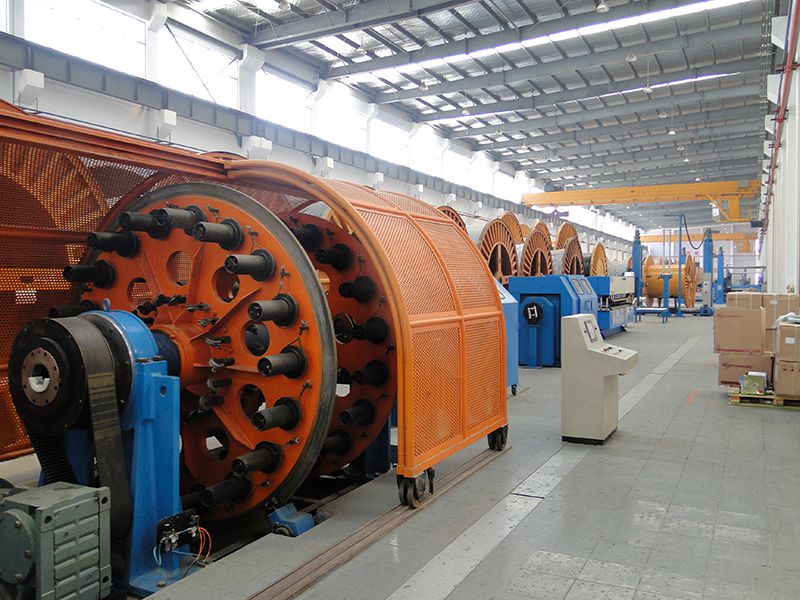

Unique Cage Design: The copper wire screening machine features a cage structure without wheels. The main spindle is made from seamless steel pipe, supported by a large bearing seat and gearbox, ensuring fast operation, low noise, and stable performance.
Flat-End Axial Type: The upper reel of the cage uses a quick-locking device for convenient and secure wire reel installation.
Integrated Chassis: The copper wire screening machine incorporates an integrated chassis design and is equipped with pneumatic brakes.
Tension Control: The screening machine ensures minimal wire breakage and low tension through electrical control.
Pneumatic Brake: The screening machine utilizes a pneumatic brake system for effective stopping.
