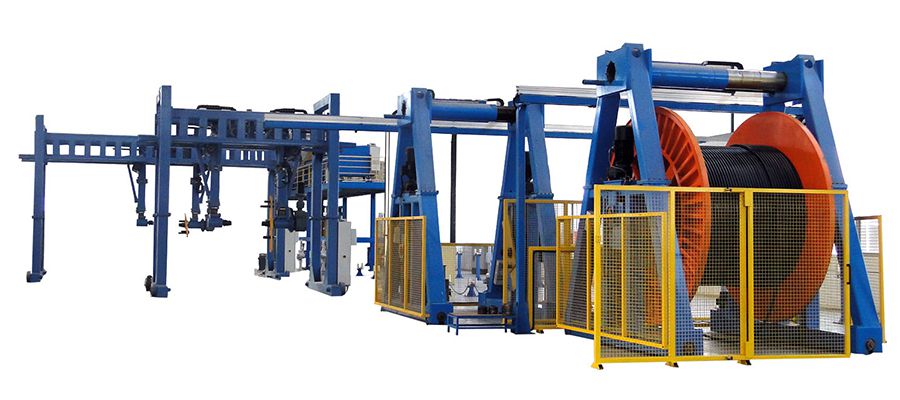

Gantry Type Pay-Off & Take-Up
S&A presents our gantry type pay-off and take-up machine, designed to accommodate wire pay-off and take-up operations across different voltage levels and cable manufacturing processes. This versatile gantry type machine is suitable for use in extrusion, cable stranding, armoring, rewinding, and more.
Features
- Speed or Tension Control: Our gantry type machine offers a choice between speed control and tension control modes to suit specific requirements.
- Adjustable Tension: The tension control range can be adjusted from 100N to 3500N.
- Compatibility with Different Wire Diameters: The pay-off and take-up machines can handle wires of various diameters, providing versatility for different cable types.
- Automatic and Manual Direction Change: The pay-off and take-up machines support automatic and manual direction change.
- Adjustable Clamp Force: The clamp force for securing the cable reel can be easily adjusted to ensure proper grip and stability.
- User-Friendly Control: The pay-off and take-up machines are equipped with electrical control cabinets, operation boxes, and main control panels, with single control or joint control knobs for easy operation.

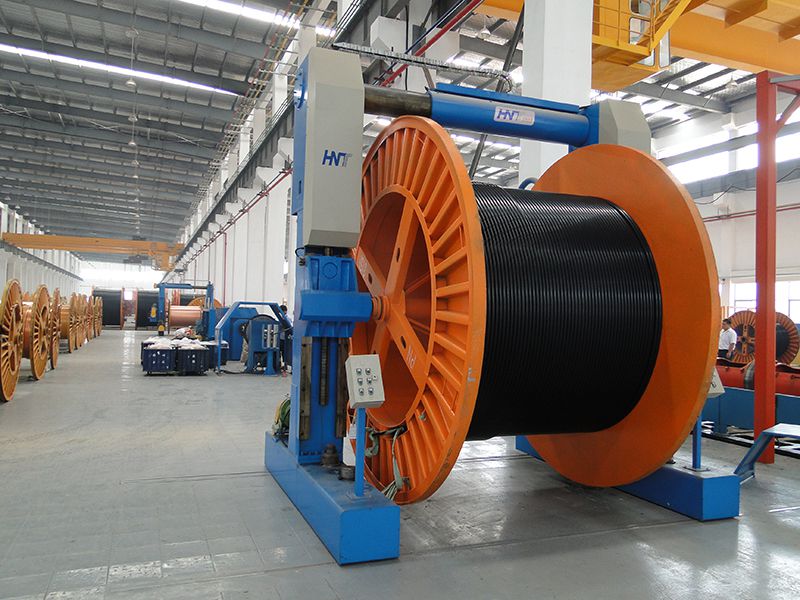

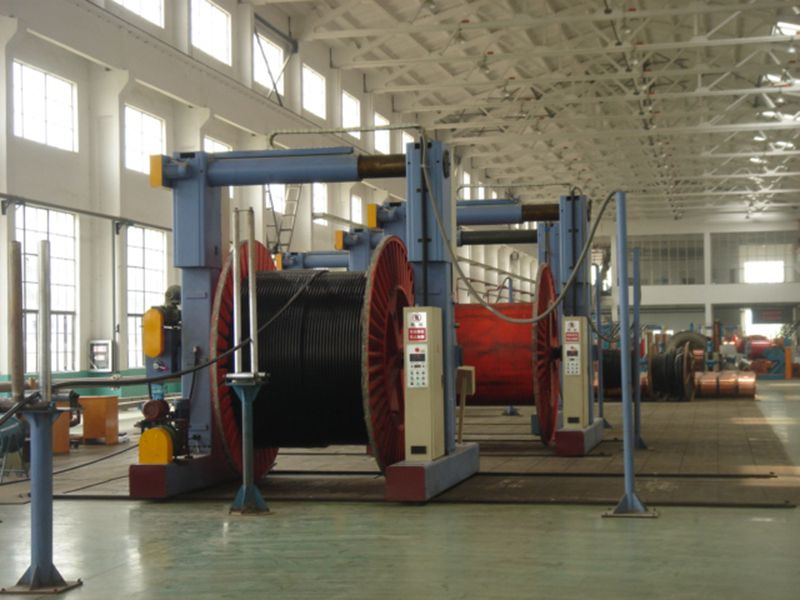

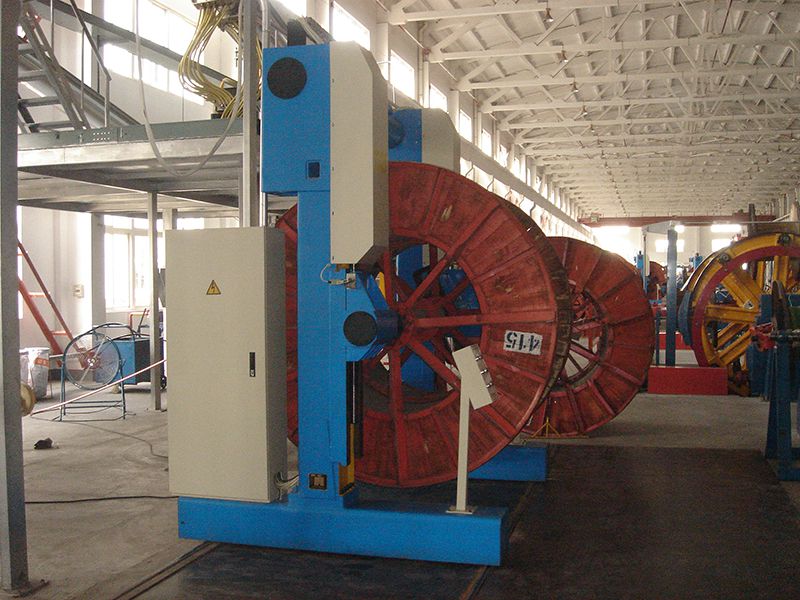

TU/PO Type Take-up(pay-off) & Floor Travering Standing Machine
Specifications
| Model | TU16 | TU20 | TU25 | TU32 | TU36 |
| Reel diameter | 850/1600 | 1000/2000 | 1250/2500 | 1600/3200 | 2000/3600 |
| Max flange diameter (mm) | 1600 | 2000 | 2500 | 3200 | 3600 |
| Min flange diameter (mm) | 850 | 1000 | 1250 | 1600 | 2000 |
| Min overall width (mm) | 600 | 600 | 900 | 1180 | 1500 |
| Max overall width (mm) | 1180 | 1500 | 1900 | 2120 | 2300 |
| Min barrel diameter (mm) | 400 | 500 | 500 | 800 | 2500 |
| Bore (mm) | 80 | 80(100) | 80(100-125) | 80(100-125) | 200 |
| Min wire diameter (mm) | 4 | 5 | 7 | 8 | 20 |
| Max wire diameter (mm) | 40 | 50 | 70 | 120 | 140 |
| Max rotation speed (RPM) | 7/17/37 | 7/17/37 | 7/17/37 | 7/17/37 | 6/12/22 |
| Traverse range (mm) | 5-50 | 6-60 | 8-90 | 9-120 | 20-140 |
| Max reel weight (kg) | 6000 | 8000 | 12000 | 15000 | 20000 |

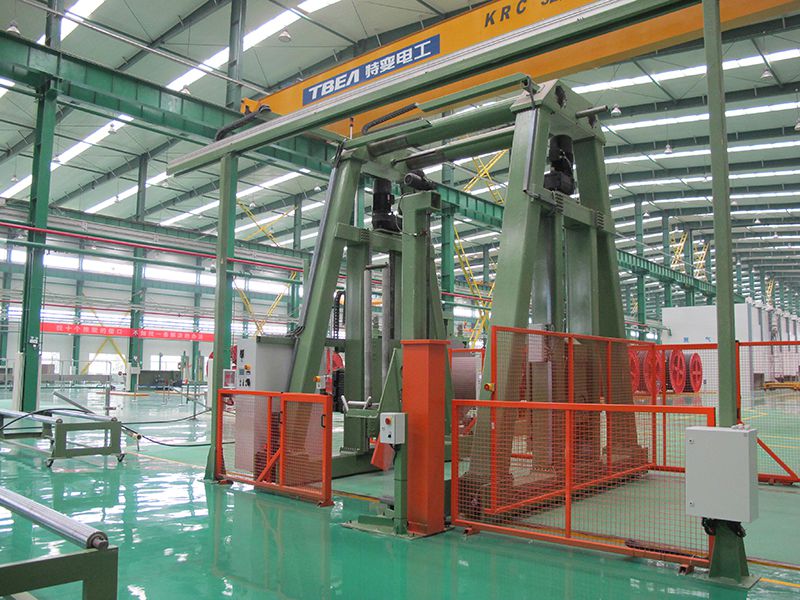

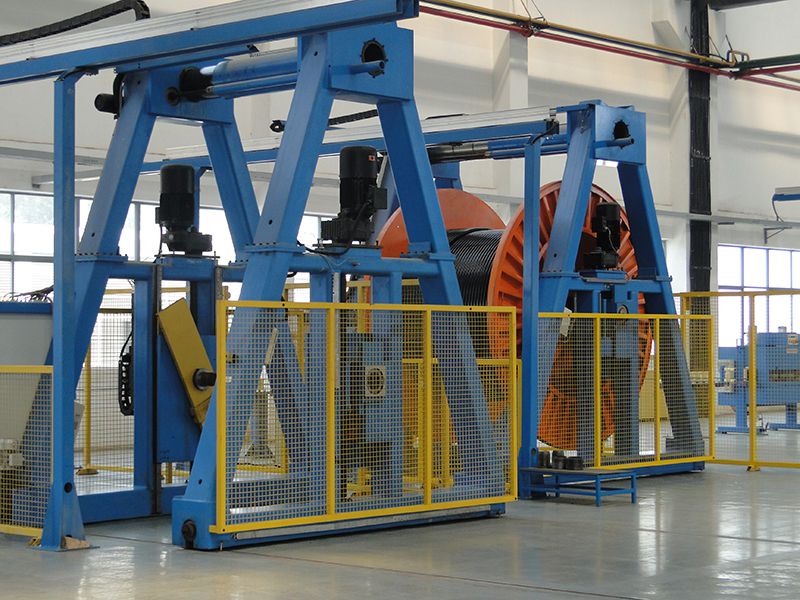

TUA/POA ‘A’ Type Moveable Take-Up/Pay-off Machine
Specifications
| Model | TUA25 | TUA32 | TUA36 | TUA42 | TUA50 |
| Reel diameter | 1250/2500 | 1600/3200 | 2000/3600 | 2500/4200 | 2500/5000 |
| Max flange diameter (mm) | 2500 | 3200 | 3600 | 4200 | 5000 |
| Min flange diameter (mm) | 1250 | 1600 | 2000 | 2500 | 2500 |
| Min overall width (mm) | 900 | 1180 | 1500 | 1900 | 1900 |
| Max overall width (mm) | 1900 | 2120 | 2300 | 2400 | 2500 |
| Min barrel diameter (mm) | 500 | 800 | 2500 | 2800 | 3000 |
| Bore (mm) | 80(100-125) | 80(100-125) | 200 | 200 | 200 |
| Min wire diameter (mm) | 7 | 8 | 20 | 30 | 40 |
| Max wire diameter (mm) | 70 | 120 | 140 | 160 | 180 |
| Max rotation speed (RPM) | 7/17/37 | 7/17/37 | 6/12/22 | 6/12/22 | 6/12/22 |
| Traverse range (mm) | 8-90 | 9-120 | 20-140 | 30-160 | 40-180 |
| Max reel weight (kg) | 12000 | 18000 | 25000 | 30000 | 40000 |

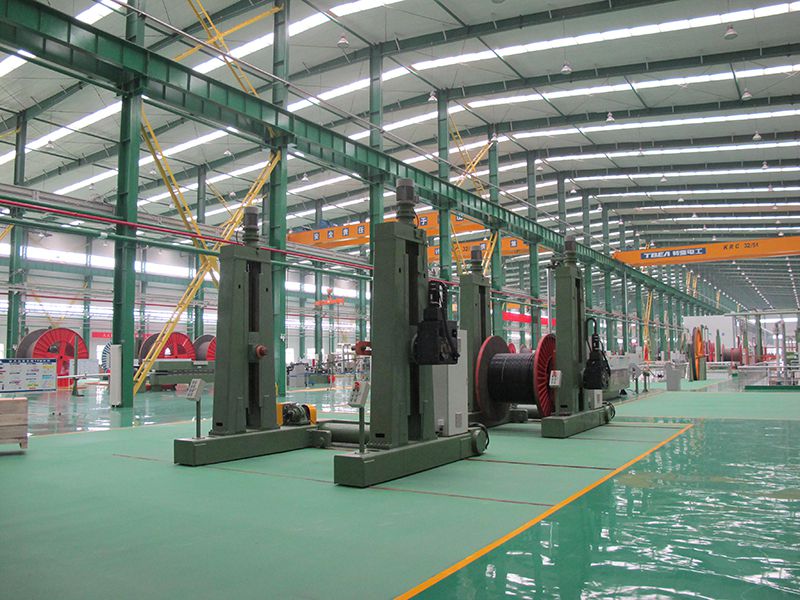

TUB/POB ‘L’ Type Floor Moveable Take-Up/Pay-off Machine
Specifications
| Model | TUB25 | TUB32 | TUB36 | TUB42 | TUB45 | TU50 |
| Reel diameter | 1250/2500 | 1600/3200 | 1800/3600 | 2000/4200 | 2000/4500 | 2500/5000 |
| Max flange diameter (mm) | 2500 | 3200 | 3600 | 4200 | 4500 | 5000 |
| Min flange diameter (mm) | 1250 | 1600 | 1800 | 2000 | 2000 | 2500 |
| Min overall width (mm) | 900 | 1180 | 1400 | 1900 | 1900 | 1900 |
| Max overall width (mm) | 1900 | 2120 | 2300 | 2400 | 2400 | 2500 |
| Min barrel diameter (mm) | 500 | 800 | 2500 | 2800 | 2800 | 3000 |
| Bore (mm) | 80(100-125) | 80(100-125) | 200 | 200 | 200 | 200 |
| Min wire diameter (mm) | 7 | 8 | 20 | 30 | 30 | 40 |
| Max wire diameter (mm) | 70 | 120 | 140 | 160 | 160 | 180 |
| Max rotation speed (RPM) | 7/17/37 | 7/17/37 | 6/12/22 | 6/12/22 | 6/12/22 | 6/12/22 |
| Traverse range (mm) | 8-90 | 9-120 | 20-140 | 30-160 | 30-160 | 40-180 |
| Max reel weight (kg) | 12000 | 18000 | 25000 | 30000 | 35000 | 40000 |
