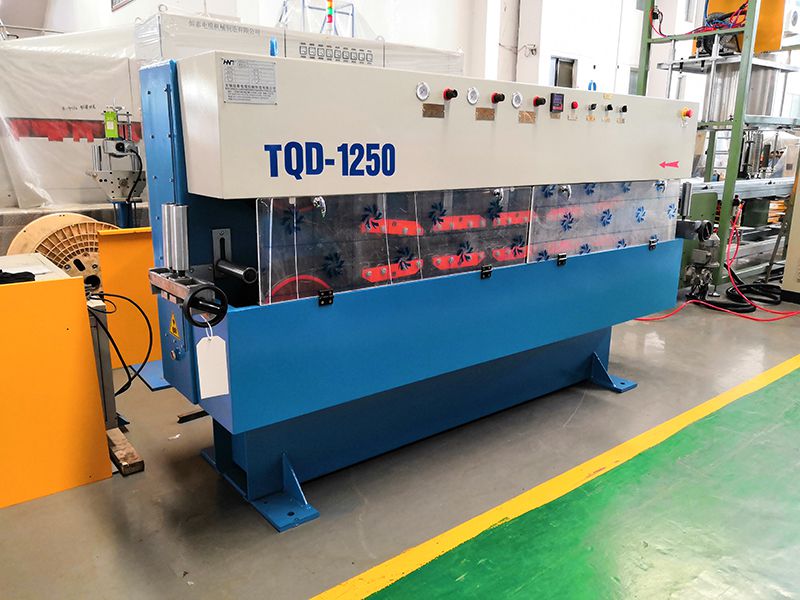

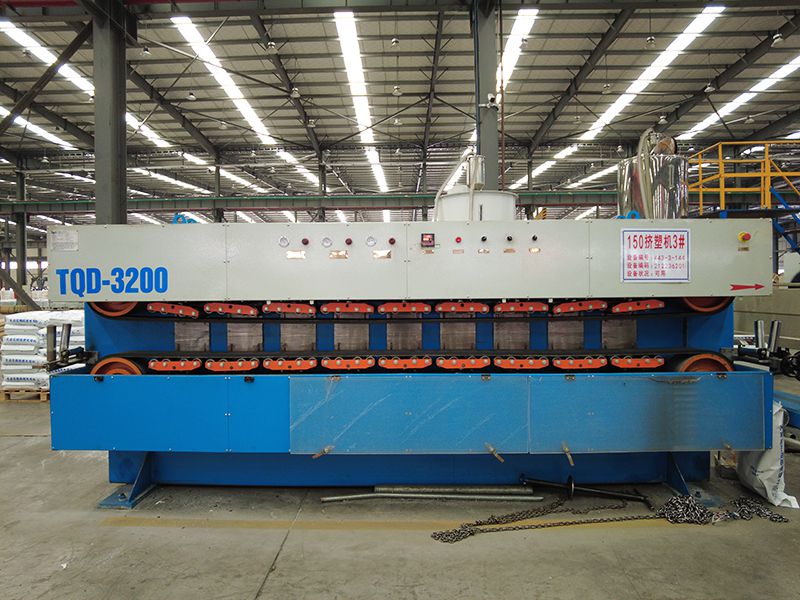

Caterpillar Haul Off Unit (Belt Caterpillar Capstan), TQD Series

Efficient Wire and Cable Hauling with our Caterpillar Haul Off Unit

S&A presents our caterpillar haul off unit, also known as the belt caterpillar capstan, designed to enhance the wire and cable pulling and transferring in wire and cable manufacturing production lines. Our caterpillar haul off machines are typically installed in extrusion lines, armoring lines, rewinding lines, and more, providing reliable and efficient wire and cable hauling capabilities.

Request a Quote

Robust Construction: The main frame of the caterpillar haul off unit is made of high-quality welded steel plates, ensuring excellent rigidity and overall stability. It is easy to install and operate.
No Bending or Deformation: The products being pulled do not experience bending or deformation. The pulling force and speed can be adjusted within a wide range to accommodate various wire and cable production specifications.
Pneumatic Tension Control: The belt traction mechanism utilizes pneumatic cylinders with corresponding upper and lower pressure roller devices. The pressure can be adjusted through a manual control valve, meeting the requirements of different cable processes.
Horizontal and Vertical Wire Guides: The haul-off unit is equipped with horizontal and vertical wire guides, ensuring consistent running center for the cable during the hauling process.
